Мониторинг сетевого трафика на OPNSense с помощью плагина os-ntopng

Print Friendly, PDF & Email

Задача:

Установить анализатор трафика ntopng на маршрутизаторе OPNSense

---------------------------------------------------------------

ntopng – это высокоскоростной анализатор трафика с WEB-интерфейсом в реальном времени и возможностью сортировать трафик по критериям.

Переходим в меню: “System > Firmware > Plugins” и выбираем плагин “os-ntopng

Логи установки:

***GOT REQUEST TO INSTALL: os-ntopng***
Updating OPNsense repository catalogue...
OPNsense repository is up to date.
All repositories are up to date.
The following 13 package(s) will be affected (of 0 checked):

New packages to be INSTALLED:
	groff: 1.22.4_3
	libmaxminddb: 1.4.3
	libpaper: 1.1.24.4
	libsodium: 1.0.18
	libzmq4: 4.3.1_1
	mysql56-client: 5.6.49
	ndpi: 3.2.d20200721,1
	norm: 1.5r6_1
	ntopng: 4.0.d20200710,1
	openpgm: 5.2.122_6
	os-ntopng: 1.2
	psutils: 1.17_5
	uchardet: 0.0.7

Number of packages to be installed: 13

The process will require 111 MiB more space.
13 MiB to be downloaded.
[1/13] Fetching os-ntopng-1.2.txz: . done
[2/13] Fetching ntopng-4.0.d20200710,1.txz: .......... done
[3/13] Fetching libsodium-1.0.18.txz: .......... done
[4/13] Fetching ndpi-3.2.d20200721,1.txz: .......... done
[5/13] Fetching libzmq4-4.3.1_1.txz: .......... done
[6/13] Fetching openpgm-5.2.122_6.txz: .......... done
[7/13] Fetching norm-1.5r6_1.txz: .......... done
[8/13] Fetching libmaxminddb-1.4.3.txz: ..... done
[9/13] Fetching mysql56-client-5.6.49.txz: .......... done
[10/13] Fetching groff-1.22.4_3.txz: .......... done
[11/13] Fetching uchardet-0.0.7.txz: .......... done
[12/13] Fetching psutils-1.17_5.txz: .......... done
[13/13] Fetching libpaper-1.1.24.4.txz: ... done
Checking integrity... done (0 conflicting)
[1/13] Installing libpaper-1.1.24.4...
[1/13] Extracting libpaper-1.1.24.4: .......... done
[2/13] Installing uchardet-0.0.7...
[2/13] Extracting uchardet-0.0.7: .......... done
[3/13] Installing psutils-1.17_5...
[3/13] Extracting psutils-1.17_5: .......... done
[4/13] Installing openpgm-5.2.122_6...
[4/13] Extracting openpgm-5.2.122_6: .......... done
[5/13] Installing norm-1.5r6_1...
[5/13] Extracting norm-1.5r6_1: .... done
[6/13] Installing groff-1.22.4_3...
[6/13] Extracting groff-1.22.4_3: .......... done
[7/13] Installing libsodium-1.0.18...
[7/13] Extracting libsodium-1.0.18: .......... done
[8/13] Installing ndpi-3.2.d20200721,1...
[8/13] Extracting ndpi-3.2.d20200721,1: .......... done
[9/13] Installing libzmq4-4.3.1_1...
[9/13] Extracting libzmq4-4.3.1_1: .......... done
[10/13] Installing libmaxminddb-1.4.3...
[10/13] Extracting libmaxminddb-1.4.3: .......... done
[11/13] Installing mysql56-client-5.6.49...
[11/13] Extracting mysql56-client-5.6.49: .......... done
[12/13] Installing ntopng-4.0.d20200710,1...
===> Creating groups.
Creating group 'ntopng' with gid '288'.
===> Creating users
Creating user 'ntopng' with uid '288'.
[12/13] Extracting ntopng-4.0.d20200710,1: .......... done
[13/13] Installing os-ntopng-1.2...
[13/13] Extracting os-ntopng-1.2: .......... done
Stopping configd...done
Starting configd.
Migrated OPNsense\Ntopng\General from 0.0.0 to 0.0.1
Reloading plugin configuration
Configuring system logging...done.
Reloading template OPNsense/Ntopng: OK
=====
Message from openpgm-5.2.122_6:

--
===>   NOTICE:

The openpgm port currently does not have a maintainer. As a result, it is
more likely to have unresolved issues, not be up-to-date, or even be removed in
the future. To volunteer to maintain this port, please create an issue at:

https://bugs.freebsd.org/bugzilla

More information about port maintainership is available at:

https://www.freebsd.org/doc/en/articles/contributing/ports-contributing.html#maintain-port
=====
Message from groff-1.22.4_3:

--
In order to be able to use the html driver, you need to install the following
packages:
 - ghostscript
 - netpbm
=====
Message from mysql56-client-5.6.49:

--
Please be aware the database client is vulnerable
to CVE-2015-3152 - SSL Downgrade aka "BACKRONYM".
You may find more information at the following URL:

http://www.vuxml.org/freebsd/36bd352d-299b-11e5-86ff-14dae9d210b8.html

Although this database client is not listed as
"affected", it is vulnerable and will not be
receiving a patch. Please take note of this when
deploying this software.
=====
Message from ntopng-4.0.d20200710,1:

--
ntopng runs a web interface service by default, it is suggested to protect
such network accessible services with packet filters or TCP wrappers.

ntopng requires to connect to a redis server to work. Please install redis
server from databases/redis or use -r option via ntopng_flags to specify a
remote one.

ntopng supports IP geolocation, to enable this you should use the
ntopng-geoip2update.sh script to update the maxminddb geolocation
data to the latest version.

To pass a configuration file to ntopng, which overrides any command
line arguments, add something like the following to rc.conf:

ntopng_flags="/path/to/file.conf"
Checking integrity... done (0 conflicting)
Nothing to do.
***DONE***

Далее: Services > Ntopng. Ошибка свидетельствует о отсутствии сервиса Redis

No Redis plugin found, please install via System > Firmware > Plugins and enable the service.

Устанавливаем Redis

Логи установки

***GOT REQUEST TO INSTALL: os-redis***
Updating OPNsense repository catalogue...
OPNsense repository is up to date.
All repositories are up to date.
The following 2 package(s) will be affected (of 0 checked):

New packages to be INSTALLED:
	os-redis: 1.1
	redis: 4.0.14_1

Number of packages to be installed: 2

The process will require 5 MiB more space.
522 KiB to be downloaded.
[1/2] Fetching os-redis-1.1.txz: ... done
[2/2] Fetching redis-4.0.14_1.txz: .......... done
Checking integrity... done (0 conflicting)
[1/2] Installing redis-4.0.14_1...
===> Creating groups.
Creating group 'redis' with gid '535'.
===> Creating users
Creating user 'redis' with uid '535'.
[1/2] Extracting redis-4.0.14_1: ......... done
[2/2] Installing os-redis-1.1...
[2/2] Extracting os-redis-1.1: .......... done
Stopping configd...done
Starting configd.
Keep version OPNsense\Redis\Redis (0.0.0)
Reloading plugin configuration
Configuring system logging...done.
Reloading template OPNsense/Redis: OK
=====
Message from redis-4.0.14_1:

--
To setup "redis" you need to edit the configuration file:
      /usr/local/etc/redis.conf

      To run redis from startup, add redis_enable="YES"
      in your /etc/rc.conf.
Checking integrity... done (0 conflicting)
Nothing to do.
***DONE***

Запускаем Redis

Теперь Ntopng запустится без каких либо проблем. Настройте параметры:

Настройте следующие параметры:

  • Enable ntopng – Включить плагин
  • HTTP Port – укажите номер порта WEB интерфейса ntopng
  • HTTPS Port – укажите номер порта WEB интерфейса ntopng в режиме https
  • Certificate – выберите SSL сертификат, который будет использоваться для https
  • DNS mode – выберите один из режимов преобразования IP. Режимы пока не тестировал, оставил отключённым.

Проверяем работу ntopng из браузера.

  • https://IP_Адресс_OPNSense:3003/
  • http://IP_Адресс_OPNSense:3000/

На обоих портах ошибка соединения

Время ожидания соединения истекло

Ntopng не добавляет автоматически правила для файрфола. При работе с Firewall, советую привыкнуть к алиасам и добавлять правила только с ними. Переходим: Firewall > Aliases и наживаем “+”

Если вы планируете внешний доступ или работаете в агрессивной сети, то стоит рассматривать только HTTPS. В моём случае доступ будет только из подконтрольной мне локальной сети.

Добавляю правило для локального интерфейса: Firewall > Rules > LAN.

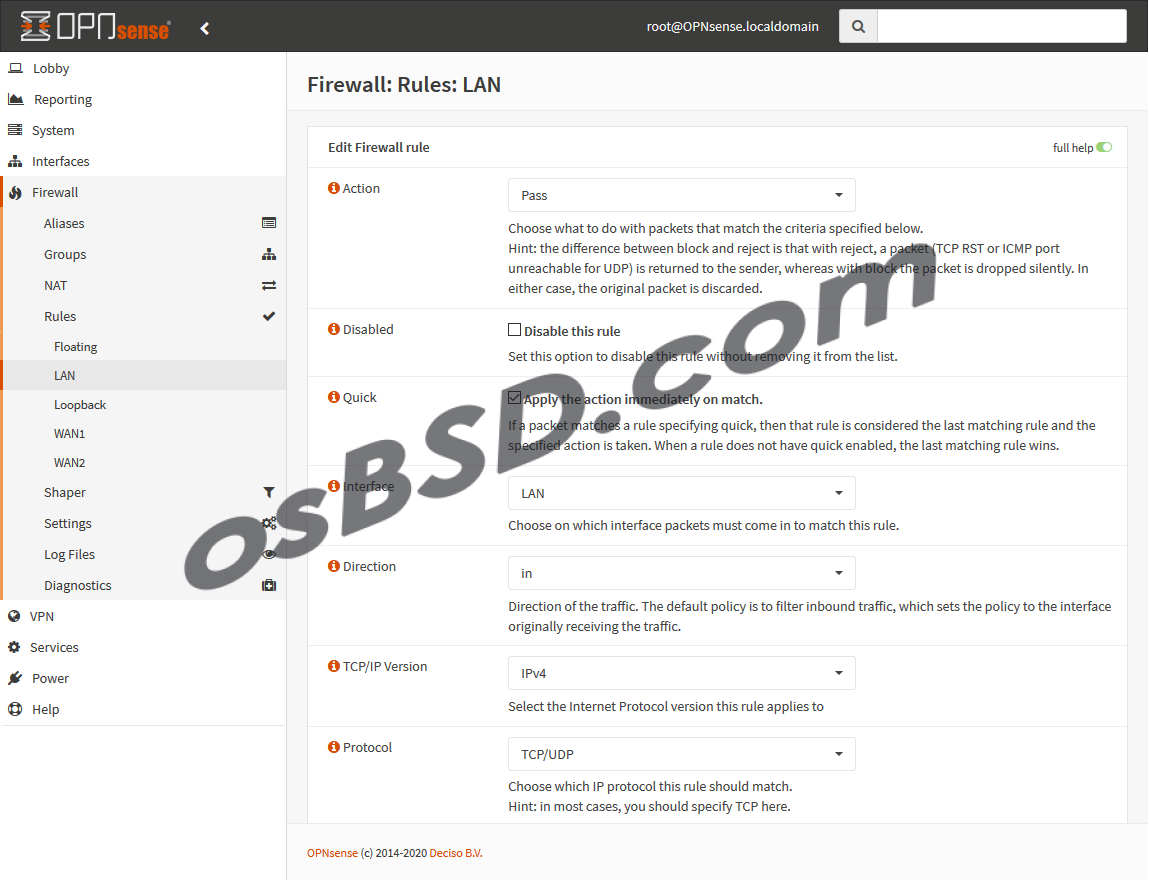

Настраиваем согласно картинок

Сохраняем правило Firewall и проверяем работу браузером. Логин и пароль по умолчанию:

usernameadmin
passwordadmin

После первой авторизации в системе, необходимо изменить пароль пользователя admin.

Наслаждаемся работой 🙂
